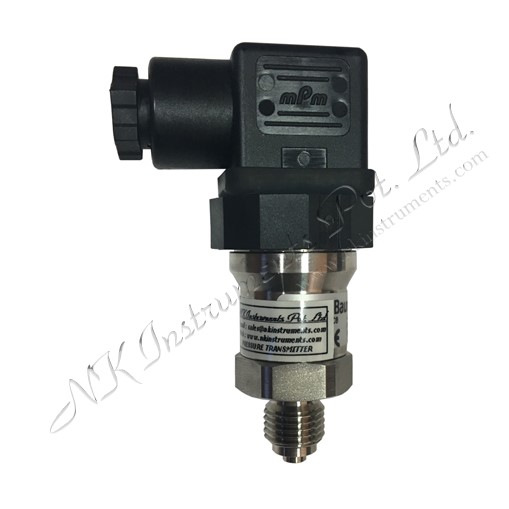

We have Blind type Miniature Vacuum Transmitters and Vacuum Transmitter with Display. We have Miniature Vacuum Transmitter for Absolute pressure, Miniature Vacuum Transmitter for gauge pressure, Digital Indicating type Vacuum Transmitter for Absolute pressure, Digital Indicating type Vacuum Transmitter for gauge pressure. So, we have Miniature Vacuum Transmitters, Vacuum Transmitter with Digital readout for Abs and g AND we also have miniature Vacuum Transmitter for Abs and g. We can supply Digital Vacuum Transmitters with integral LCD Digital Display as well as Digital Vacuum Transmitters with integral LED Digital Display. Vacuum Transmitter senses the Vacuum in the process and gives the output in current or, voltage in proportion to the change in Vacuum. Indication : without Output options : 4 to 20 mA, 0 to 10 Vdc, 1 to 5 Vdc or, 0.5 to 4.5 V dc under 5 V dc Accuracy : +/- 0.25%, 0.5% or, 1% of FS Enclosure type : IP 65, IP 67, IP 68, Exproof Zero and Span Adjustment : With or, Without Process connection options : 1/4' BSP threaded end Ranges : various ranges from 0 to 760 mm Hg Max. pressure : Full Vacuum up to 2 bar pressure Operating Temperature: 0 to 60 degree C
