Description

Product details

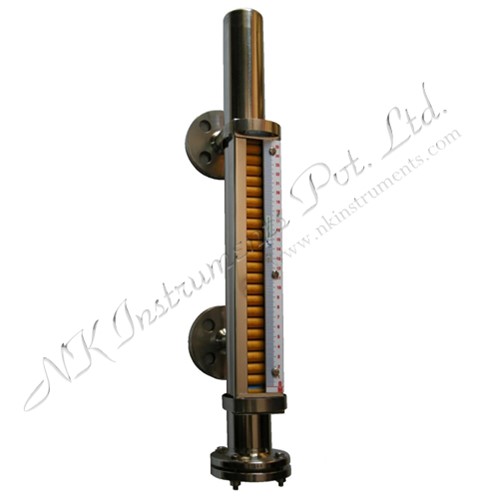

Bi-colour Roller Magnets type Level Gauges consistes of series of bi-color magnets housed in a rectangular narrow chamber. These bi-color magnets are actuated by a magnetic float, which moves with the liquid level. MOC of Float : SS 304 / SS 316 / SS316 L / Monel Float dimensions : 50 mm OD X 250 mm long or, 45 mm OD X 150 mm long Mounting : Top Mounted or, Side Mounted along with Bypass assembly Service : any non sticky liquid Display type : Red & White or, similar colored rollers (ball type or strips type) with delrin bushes protected with Aluminium or, SS channel. Level Indicating Scale : Acrylic or, Aluminium Scale of 25 mm width with 10 mm Intervals. Max. Working pressure & temperature : 10 Kg/cm2 and 150 degree C - Standard Level Switch : Field settable Reed or, Micro Switches also can be provided with this typ eof gauge
