'ph indicating controller'

In many of the Pharma and beverages industries, DM or, WFI water is used where pH has to be monitored as well as controlled. In Effluent and Sewage treatment also pH has to be controlled using our Online pH Electrode and Controller.. We provide the glass tube type Online pH Electrode along with Digital pH Indicator with Relay. Details of Electrode : Type of Electrode : Online Glass Tube type pH Electrode Process Connections : 3/8” BSP (M) Electrode Holder : PVC, PTFE or, SS Electrode Holder Mounting : ¾” BSP (M) Range : 0 to 14 pH Resolution : 0.1 Max. Temperature : Electrode with PVC top cover up to 60 degree C Electrode with PTFE top cover up to 100 degree C Electrode with SS top cover up to 120 degree C Max. Pressure : 6 bar Electrical connection : Five meter cable with BNC connector Approx. Length of the assembly : 120 mm Details of Digital Indicating Controller : Mounting : Panel mounted Power Supply : 230 V AC Display : 4 digit, 7 segment LED display Dimensions : 96 X 96 X 110 mm Relay : 1 nos. 5 A, 230 V AC (Optional 2 relays)

In many of the Pharma and Beverages industries, DM or, WFI water is used where pH has to be monitored online. In Effluent and Sewage treatment also pH has to be maintained. For these purposes, online pH Electrodes and their Controllers are essential.. We provide the glass tube type Online pH Electrode along with the holder. Technical Specifications: Type of Electrode : Glass Tube type Online pH Electrode Process Connections : 3/8” BSP (M) Electrode Holder : PVC / PTFE or, SS Electrode Holder Mounting : ¾” BSP (M) Range : 0 to 14 pH Resolution : 0.1 Max. Temperature : Electrode with PVC top cover up to 60 degree C Electrode with PTFE top cover up to 100 degree C Electrode with SS top cover up to 120 degree C Max. Pressure : 6 bar Electrical connection : Five meters cable with BNC connector Approx. Length of the assembly : 120 mm The Digital pH Indicator or, Controller or, Transmitter unit also can be provided along with this Electrode.

An ORP Indicating Controller with Electrode is an advanced device used not just to measure Oxidation-Reduction Potential (ORP), but also to control processes based on that measurement. It’s essentially the next step up from a transmitter—it includes built-in control logic for automated chemical dosing, alarms, or process adjustments.

DO2 Indicating Controller with Electrode

We provide Process Indicators and Process Indicating Controllers as per the clients demand & the process needs. Input can be 4 to 20 mA, 0 to 10 V or, pulses, resistance etc. Output can be Potential Free Contacts (Single / Two or, Four nos.) or, Re-transmitter etc. Display will be LED 7 segment or, LCD Power Supply can be 230 V AC, 110 V AC, 24 V DC or, 12 V DC Mounting types can be Panel mounted, Wall Mounted or, Field mounted Enclosure types can be IP 40, IP 54, IP 65 or, Flameproof

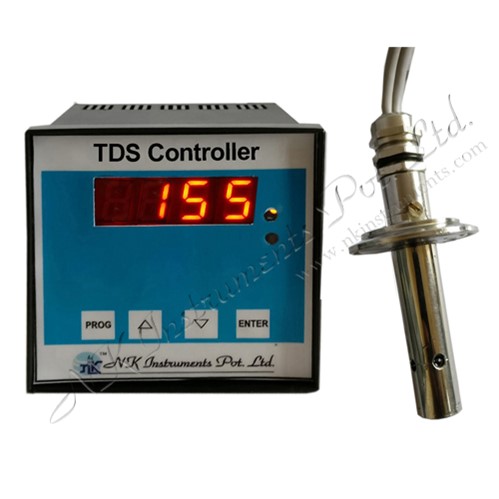

A TDS (Total Dissolved Solids) Indicating Controller with Electrode is a device used to measure and monitor the concentration of dissolved solids in water or other liquids. TDS represents the total amount of organic and inorganic substances (such as salts, minerals, metals, etc.) that are dissolved in a liquid. The TDS indicating controller uses an electrode sensor to detect these dissolved solids and give real-time readings.

We have Temperature Indicating Transmitters. The Digital Indication for these type of Temperature Transmitters can be in LCD or, LED. Normally the Sensing Probe is integral with the Digital display unit, but if the Indicating Transmitter is required in Panel Mounting or Wall mounting type that also can be provided. We have 2 wire type Temperature Transmitters, 4 wire type Temperature Transmitters and loop powered Temperature Transmitter also.

We manufacture OnLine Digital Conductivity Indicators and Conductivity Conrtrollers also. We have Temperature Compensdated type and Without Temperature Comprensated type Online Digital Conductivity Controllers. This Controller is provided along with the ONline Conductivity Electrode. The Digital Unit can be Field MOunted (Integral) or, Panel Mounted (Panel mounted) versions.. We offersSingle Relay or, 2 Delays in Conductivity Controllers. With these Relays the Conductivity of the flowing liquid can be controlled within the resired set limits.

In many of the Pharma and Beverages industries, DM or, WFI water is used where pH has to be monitored online. In Effluent and Sewage treatment also pH has to be maintained. For these purposes, online pH Electrodes and their Controllers are essential.. We provide the glass tube type Online pH Electrode along with the holder. Technical Specifications: Type of Electrode : Glass Tube type Online pH Electrode Process Connections : 3/8” BSP (M) Electrode Holder : PVC / PTFE or, SS Electrode Holder Mounting : ¾” BSP (M) Range : 0 to 14 pH Resolution : 0.1 Max. Temperature : Electrode with PVC top cover up to 60 degree C Electrode with PTFE top cover up to 100 degree C Electrode with SS top cover up to 120 degree C Max. Pressure : 6 bar Electrical connection : Five meters cable with BNC connector Approx. Length of the assembly : 120 mm The Digital pH Indicator or, Controller or, Transmitter unit also can be provided along with this Electrode.
