Description
Product details

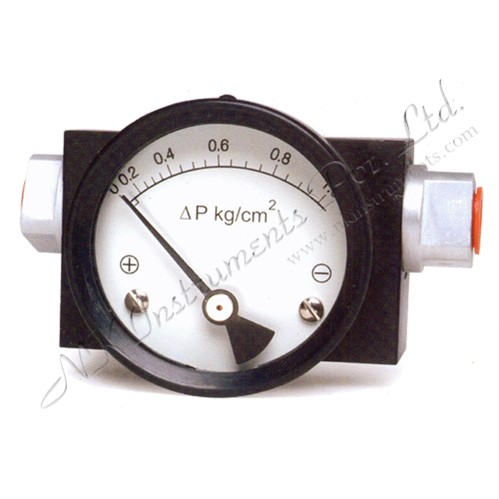

Magnetic coupling Piston type Differential Pressure Gauges (CE Certified model) These gauges are suitable for Non-Magnetic Fluids only. Model : 200 DPG Range : various ranges from 0.25 to 10 bar Dial Size : various options like 2”, 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia. Connection : 1/4” NPT - F (Optional BSP) Accuracy : + / - 2% FSD (Ascending) Working Pressure : High static pressure - 100 Kg/cm2 Porting : Options like - In–Line, Back or, Bottom Calibration : Non-Linear, spread over 65 degrees to 75 degrees Arc. Sensing Element : Piston Wetted parts : Aluminium, Brass, SS 316, Buna N, Viton Max. Working Temp.: Max. 80 degree C if Buna N is used, it can be max. 200 degree C if Viton is used. Enclosure : IP 65 Singe or, Duel Reed Switch Contacts can be provided along with DP Gauge, either in IP 65 or, in Flameproof enclosure
